BEST GROWTH · DIESEL INJECTION SYSTEMSecho@best-growth.com
BG 80120

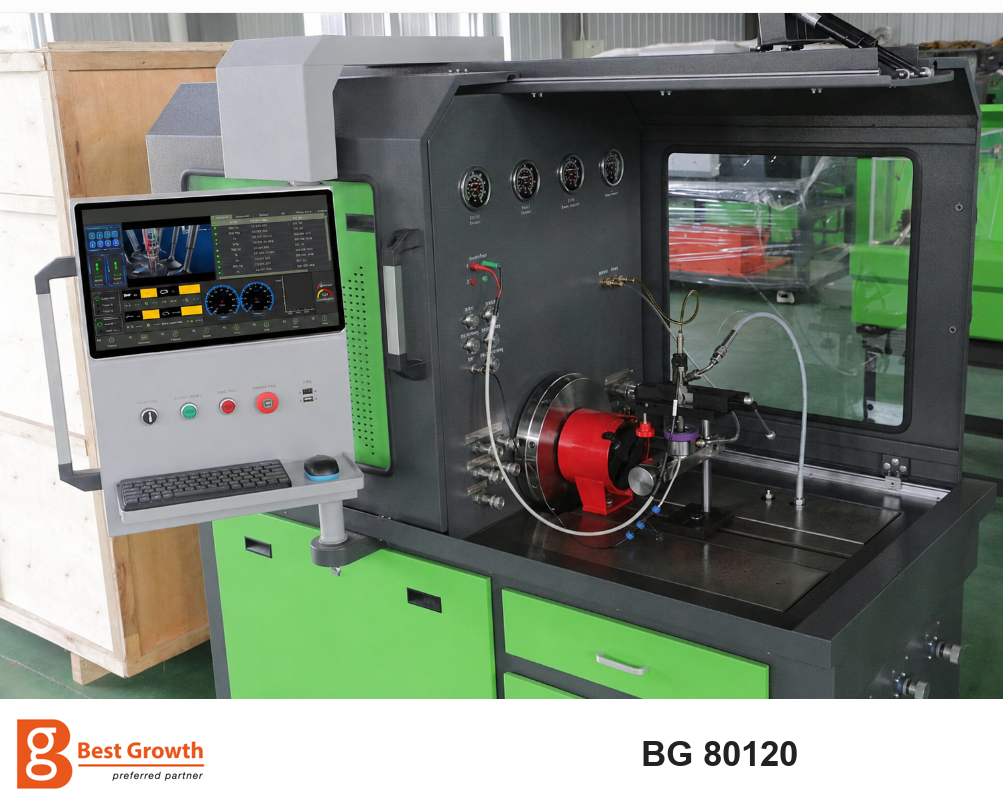

BG 80120 Common Rail Test Bench
Common rail injector and pump testing for selected applications, with matching fixtures, harnesses and test data. Coding and response functions depend on the agreed configuration.
- BG Part Number
- BG 80120
- Category
- Common Rail Test Benches
Product Description
The BG 80120 brings common rail injector and pump testing into one workshop platform, with an accessible test area and operator console.
Selected solenoid and piezoelectric applications, Bosch four-pin and Denso six-pin injectors require matching software data, harnesses and fixtures. Pump scope includes Bosch CP1/CP2/CP3/CP4/CB18/CB28, Denso HP0/HP3/HP4 and selected Delphi/Siemens applications with the appropriate adapter package.
Coding, response measurements and specialized systems depend on the ordered configuration and exact component reference. Confirm pressure capability, drive speed, electrical supply and display specification for the agreed machine.
Read the full BG 80120 technical guide.

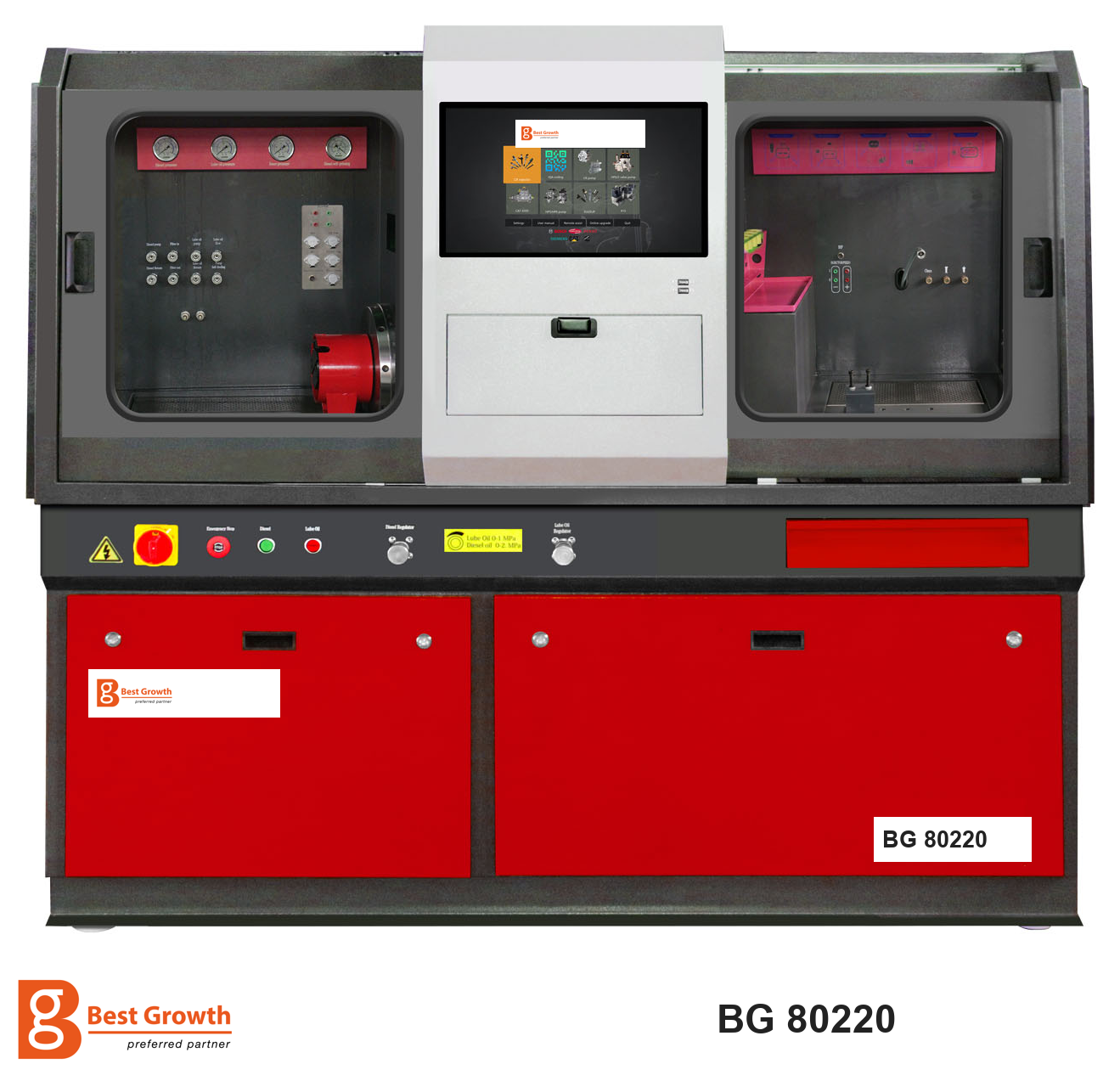

Compare BG 80220.
